RDG3
DEMOLITION GRAB
DEMOLITION GRAB
You can mount it on
2.5-4 t
You can mount it on
2.5-4 t
USA SPECS
METRIC SYSTEM
USA SPECS
Excavator weight
5510 – 8820 lbs
Equipment weight
595 lbs

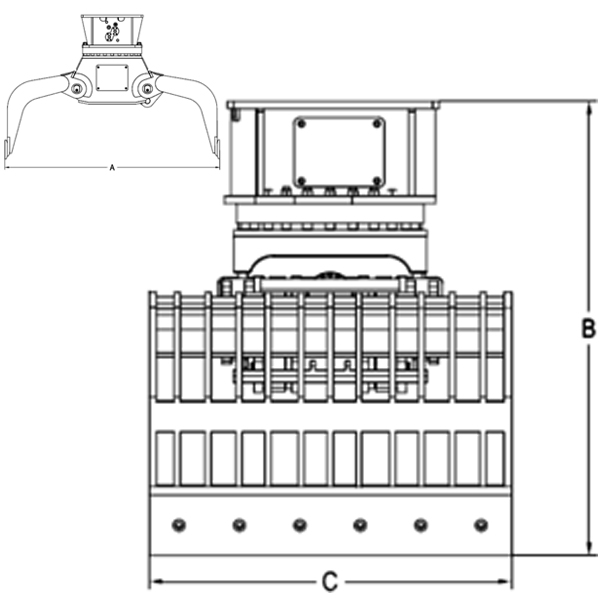

A Opening
41 inches
B Height
37 inches
C Width
20 inches
Maximum oil pressure
2610 psi
Required oil flow
6 gal/min
Rotation oil pressure
725 psi
Rotation oil flow
4 gal/min
METRIC SYSTEM
Excavator weight
2.5 – 4 ton
Equipment weight
270 kg
A Opening
1050 mm
B Height
940 mm
C Width
500 mm
Maximum oil pressure
180 bar
Required oil flow
25 L/min
Rotation oil pressure
50 bar
Rotation oil flow
15 L/min
The RDG sorting grab is an extremely versatile attachment, designed to demolish, handle and facilitate the recycling of residual demolition material.
The models we offer weigh from 187 kg to 3500 kg, and can be mounted on mini excavators and medium-large excavators, from 1,8 t to 65 t.
All of our demolition and selection grapple models feature a 360° continuous rotation system, which allows a precise, simple and agile way of working, even in complex situations.
Our selection grabs are made with anti-wear materials and treatments, and are constantly updated to optimize their performance. They boast smooth movements and interchangeable blades.
