RT 115
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
12-20 t
You can mount it on
12-20 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
12 – 20 t
Breaker weight
2205 lb
Inner diam. IN hose
1 inch
Inner diam. OUT hose
1 inch
Chisel diameter
4.5 inch
Height with standard tool
78.7 inch
Required oil supply
26.42 – 39.63 gal/min
Oil pressure adjusted to the hammer
2030 – 2320 psi
Maximum back pressure
290 psi
Blows per minute
400 – 700
Energy per blow
2000 ft/lbs
METRIC SYSTEM
Carrier weight
12 – 20 t
Breaker weight
1000 kg
Inner diam. IN hose
25 mm
Inner diam. OUT hose
25 mm
Chisel diameter
115 mm
Height with standard tool
2000 mm
Required oil supply
100 – 150 L/min
Oil pressure adjusted to the hammer
120 – 160 bar
Maximum back pressure
20 bar
Blows per minute
400 – 700
Energy per blow
2700 J

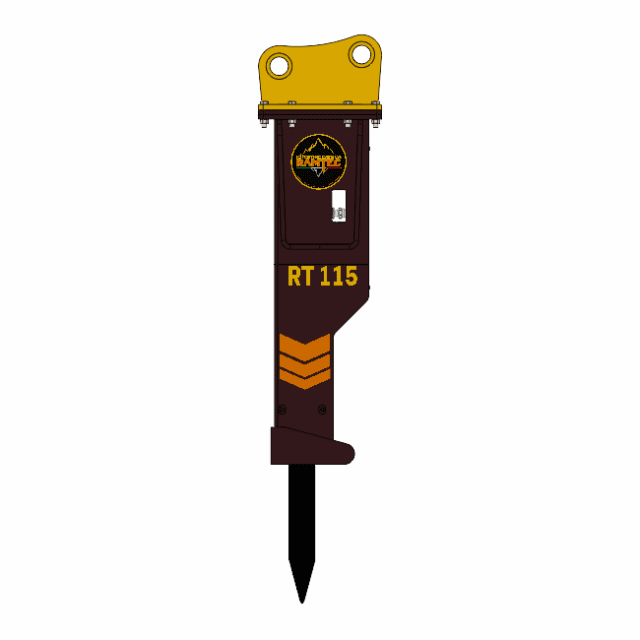

The RT115 demolition hammer is versatile and easy to maintain.
This hydraulic hammer is suitable for middle size excavation and concrete structures demolition works, road and mining works.
This hydraulic breaker offers an excellent ratio power/weight and it’s featured by a sturdy and slim structure, to easily access narrow areas.
