RT 150
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
27-35 t
You can mount it on
27-35 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
27 – 35 t
Breaker weight
5291 lb
Inner diam. IN hose
1¼ inch
Inner diam. OUT hose
1¼ inch
Chisel diameter
5.9 inch
Height with standard tool
98.4 inch
Required oil supply
45 – 52.8 gal/min
Oil pressure adjusted to the hammer
2175 – 2610 psi
Maximum back pressure
217 psi
Blows per minute
380 – 750
Energy per blow
5000 ft/lbs
METRIC SYSTEM
Carrier weight
27 – 35 t
Breaker weight
2400 kg
Inner diam. IN hose
32 mm
Inner diam. OUT hose
32 mm
Chisel diameter
150 mm
Height with standard tool
2500 mm
Required oil supply
170 – 200 L/min
Oil pressure adjusted to the hammer
150 – 170 bar
Maximum back pressure
15 bar
Blows per minute
380 – 750
Energy per blow
6500 J

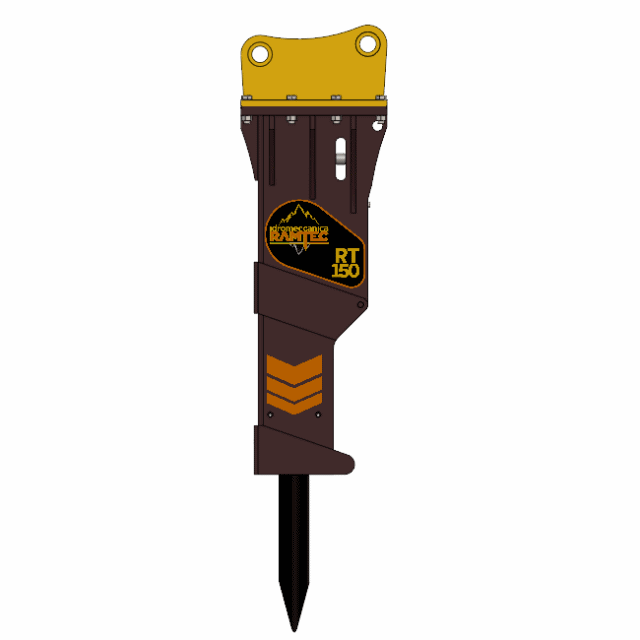

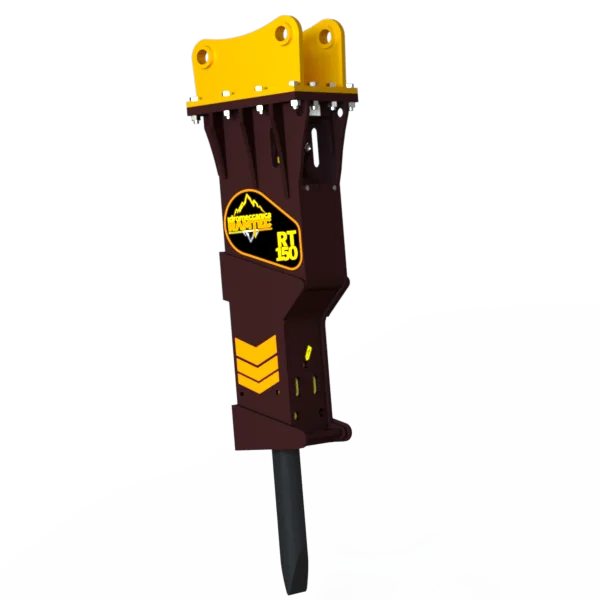

The RT150 demolition hammer has got a sturdy structure, an excellent ratio power/weight, low noise level, low level of vibrations to the excavator’s boom and it’s easy to maintain.
This hydraulic hammer is suitable for quarry compact rocks, reinforced concrete and other challenging demolition works.
