RT 155
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
32-50 t
You can mount it on
32-50 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
32 – 50 t
Breaker weight
7055 lb
Inner diam. IN hose
1¼ inch
Inner diam. OUT hose
1¼ inch
Chisel diameter
6.1 inch
Height with standard tool
108.3 inch
Required oil supply
52.8 – 66 gal/min
Oil pressure adjusted to the hammer
2320 – 2755 psi
Maximum back pressure
217 psi
Blows per minute
250 – 500
Energy per blow
7500 ft/lbs
METRIC SYSTEM
Carrier weight
32 – 50 t
Breaker weight
3200 kg
Inner diam. IN hose
32 mm
Inner diam. OUT hose
32 mm
Chisel diameter
155 mm
Height with standard tool
2750 mm
Required oil supply
200 – 260 L/min
Oil pressure adjusted to the hammer
160 – 180 bar
Maximum back pressure
15 bar
Blows per minute
250 – 500
Energy per blow
10000 J

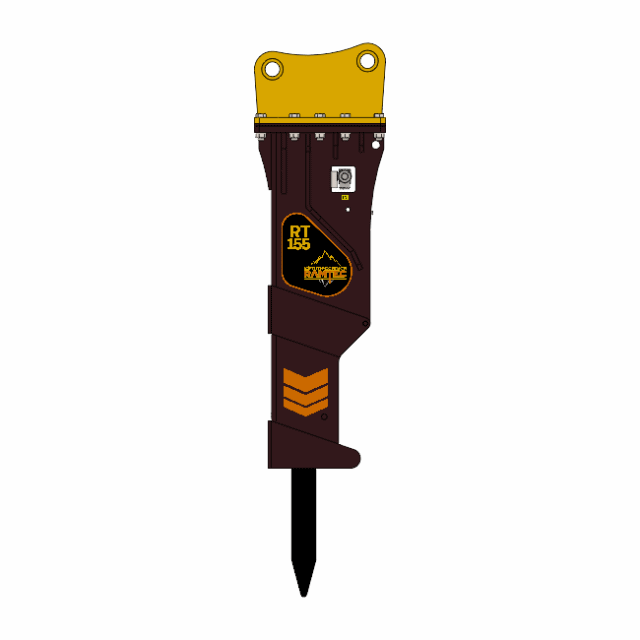

The RT155 demolition hammer has got a sturdy structure, an excellent ratio power/weight, low noise level, low level of vibrations to the excavator’s boom and it’s easy to maintain.
This hydraulic breaker is suitable for quarry compact rocks, reinforced concrete and other challenging demolition works.
