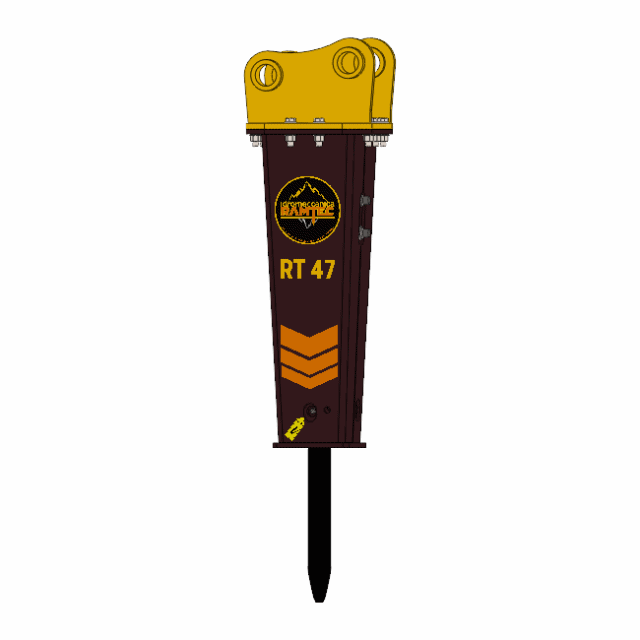

RT 47
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
1-3 t
1-3 t
You can mount it on
1-3 t
1-3 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
1 – 3 t
Breaker weight
220 lb
Inner diam. IN hose
3/8 inch
Inner diam. OUT hose
1/2 inch
Chisel diameter
1.9 inch
Height with standard tool
39.4 inch
Required oil supply
5.28 – 7.92 gal/min
Oil pressure adjusted to the hammer
1160 – 1595 psi
Maximum back pressure
406 psi
Blows per minute
700 – 1200
Energy per blow
170 ft/lbs
METRIC SYSTEM
Carrier weight
1 – 3 t
Breaker weight
100 kg
Inner diam. IN hose
10 mm
Inner diam. OUT hose
12 mm
Chisel diameter
47 mm
Height with standard tool
1000 mm
Required oil supply
20 – 30 L/min
Oil pressure adjusted to the hammer
80 – 110 bar
Maximum back pressure
28 bar
Blows per minute
700 – 1200
Energy per blow
230 J
RT47 demolition hammer is ideal for construction and renovation works, for demolition of concrete or masonry structures or whenever there’s a need to operate in limited and narrow spaces.
This hydraulic hammer perfectly fits a skid steer or a mini excavator.
You can switch between this one and other 4 of our hydraulic breakers, on your mini loader, by using our skid steer plate.
The closed casing allows to protect the hydraulic breaker from impacts, rocks, dust and other external agents besides reducing noise.
