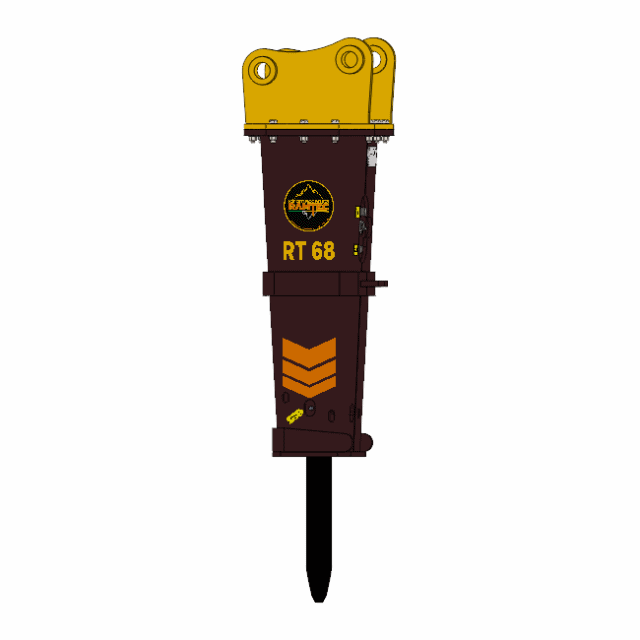

RT 68
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
3.5-5 t
4-9 t
3.5-8 t
You can mount it on
3.5-5 t
4-9 t
3.5-8 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
3.5 – 8 t
Breaker weight
551 lb
Inner diam. IN hose
1/2 inch
Inner diam. OUT hose
5/8 inch
Chisel diameter
2.7 inch
Height with standard tool
50.4 inch
Required oil supply
13.21 – 23.77 gal/min
Oil pressure adjusted to the hammer
1305 – 2030 psi
Maximum back pressure
362 psi
Blows per minute
500 – 1000
Energy per blow
440 ft/lbs
METRIC SYSTEM
Carrier weight
3.5 – 8 t
Breaker weight
250 kg
Inner diam. IN hose
12 mm
Inner diam. OUT hose
16 mm
Chisel diameter
68 mm
Height with standard tool
1280 mm
Required oil supply
50 – 90 L/min
Oil pressure adjusted to the hammer
90 – 140 bar
Maximum back pressure
25 bar
Blows per minute
500 – 1000
Energy per blow
600 J
The RT68 demolition hammer is versatile and can be mounted on skid steer, backhoe loader and mini excavator.
You can switch between this one and other 4 of our hydraulic breakers, on your mini loader, by using our skidsteer plate.
This hydraulic hammer can be used for many kinds of jobs, mainly in urban areas, in compliance with the noise limits and with the very low vibrations.
