RT 72
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
4-5 t
4-10 t
4-8 t
You can mount it on
4-5 t
4-10 t
4-8 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
4 – 8 t
Breaker weight
617 lb
Inner diam. IN hose
1/2 inch
Inner diam. OUT hose
3/4 inch
Chisel diameter
2.8 inch
Height with standard tool
49.2 inch
Required oil supply
13.21 – 23.77 gal/min
Oil pressure adjusted to the hammer
1160 – 1885 psi
Maximum back pressure
362 psi
Blows per minute
600 – 950
Energy per blow
457 ft/lbs
METRIC SYSTEM
Carrier weight
4 – 8 t
Breaker weight
280 kg
Inner diam. IN hose
12 mm
Inner diam. OUT hose
19 mm
Chisel diameter
72 mm
Height with standard tool
1250 mm
Required oil supply
50 – 90 L/min
Oil pressure adjusted to the hammer
80 – 130 bar
Maximum back pressure
25 bar
Blows per minute
600 – 950
Energy per blow
620 J

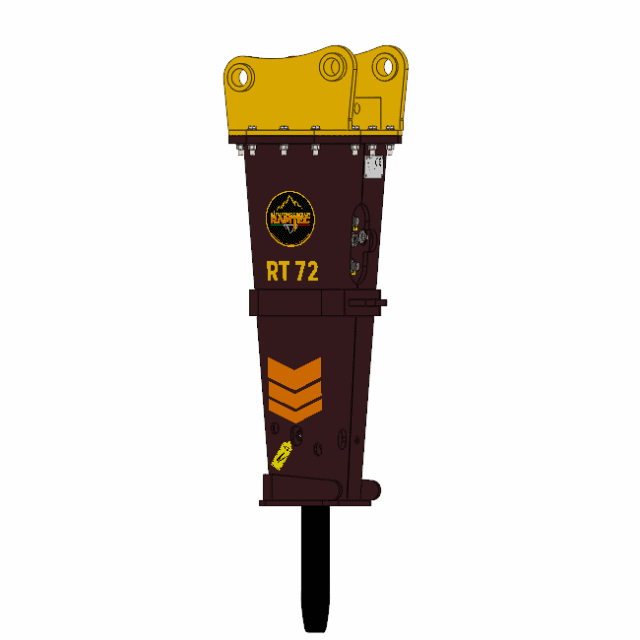

The RT72 demolition hammer is suitable for urban areas, in compliance with the noise limits and with the very low vibrations.
This hydraulic hammer can suit skidsteer, backhoe loader as well as mini excavator.
You can switch between this one and other 4 of our hydraulic breakers, on your mini loader, by using our skid steer plate.
