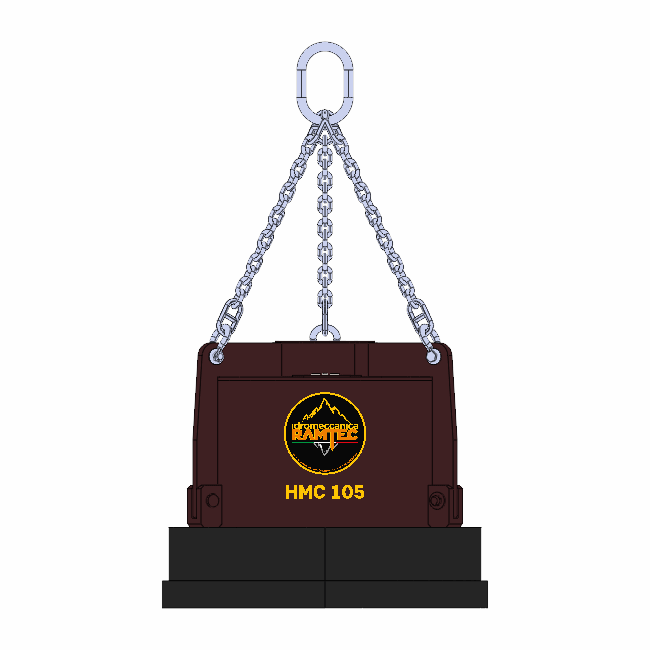

HMC 105
HYDRAULIC MAGNET
HYDRAULIC MAGNET
You can mount it on
19-23 t
You can mount it on
19-23 t
USA SPECS
METRIC SYSTEM
USA SPECS
Magnet weight
2425 lb
Magnet Ø
41.3 inches
Power
5.5 kW
Voltage
220 Volt
Excavator weight (minimum)
19 t
Excavator weight (recommended)
23 t
Required oil flow
18 – 52 gal/min
Oil pressure
2610.7 psi
Scrap weight
992 lb
Plate weight
15432.3 lb
METRIC SYSTEM
Magnet weight
1100 kg
Magnet Ø
1050 mm
Power
5.5 kW
Voltage
220 Volt
Excavator weight (minimum)
19 t
Excavator weight (recommended)
23 t
Required oil flow
70 – 200 L/min
Oil pressure
180 bar
Scrap weight
450 kg
Plate weight
7000 kg
Idromeccanica Ramtec’s hydraulic magnets represent the most efficient way to complete lifting of metal sheets and selection of ferrous material of all shapes and sizes that have to be handled and recycled.
Our hydraulic magnet is the ideal attachment for demolition sites, recycling plants and scrap yards to handle metal scraps and help you to convert them into profit.
Moreover, our magnets allow you to make your construction site safer and cleaner, by quickly collecting all the ferrous scraps, the bars and the metal sheets that may be dangerous for workers, machines and other attachments.
They are connected to the same tubes of the excavator where other attachments such as hydraulic breakers, hydraulic compactors, shears, grabs, crushers or pulverizers are connected.
Idromeccanica Ramtec’s magnet doesn’t need any electric cable installation and electric control box on the excavator. It only has to be connected to the excavator’s hoses. It’s equipped with oil flow and pressure control valves and with a quick material release device.
The lower plate is made of a special wear-resistant steel which improves its quality, to make its life longer and to optimize your investment.
