CR 20
HYDRAULIC PLATE COMPACTOR AND PILEDRIVER
HYDRAULIC PLATE COMPACTOR AND PILEDRIVER
You can mount it on
1-2.5 t
1-2.5 t
You can mount it on
1-2.5 t
1-2.5 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
1 – 2.5 t
Equipment weight
375 lb
Required oil supply
3 – 5 gal/min
Oil pressure
1450 – 1740 psi
Rounds per minute
1200 – 2200
Force to the ground
18 kN
Standard base plate
15.7 x 17.7 inch
METRIC SYSTEM
Carrier weight
1 – 2.5 t
Equipment weight
170 kg
Required oil supply
12 – 20 L/min
Oil pressure
100 – 120 bar
Rounds per minute
1200 – 2200
Force to the ground
18 kN
Standard base plate
400 x 450 mm

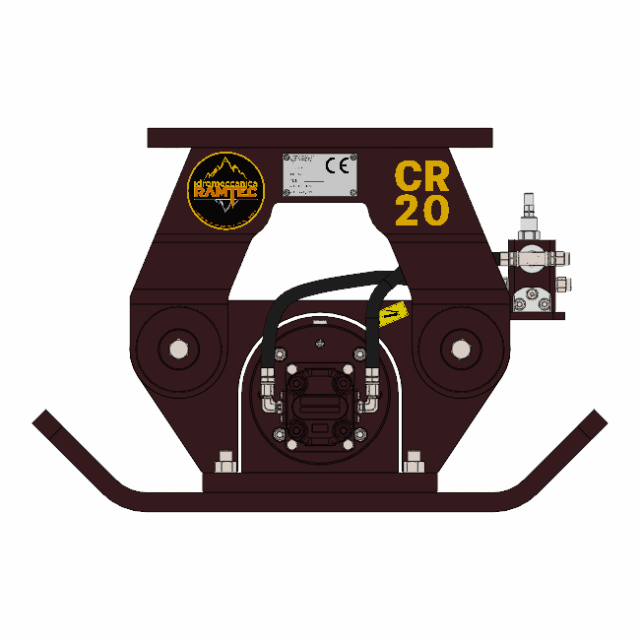

CR20 is the smallest vibrating plate compactor of Idromeccanica Ramtec’s range.
Weighing 170 kg, it is very easy to instal and easy to use, and it’s suitable for both a skidsteer or a mini excavator, from 1 t to 2,5 t.

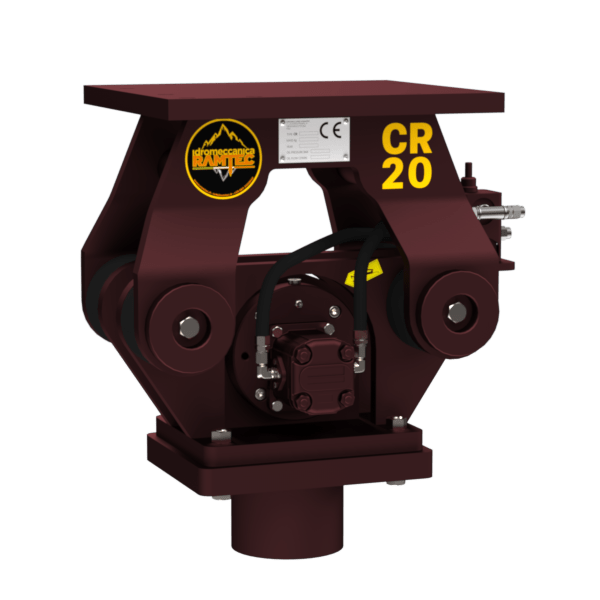

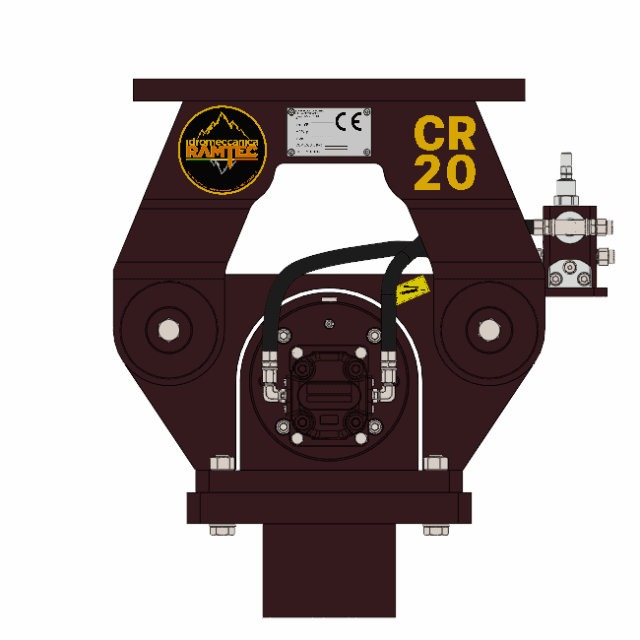

This vibratory plate can be mounted on the carrier machine with a standard top bracket, with a quick adapter coupler or with a skid steer plate. The bolted – and not welded – lower plate of this hydraulic compactor can be easily replaced with a custom-made piledriver plate. This solution makes our CR20 compactor an ideal attachment to drive piles of different dimensions into the soil.
