CR 45
HYDRAULIC PLATE COMPACTOR AND PILEDRIVER
HYDRAULIC PLATE COMPACTOR AND PILEDRIVER
You can mount it on
5 t
5-9 t
5-9 t
You can mount it on
5 t
5-9 t
5-9 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
5 – 9 t
Equipment weight
950 lb
Required oil supply
5 – 13 gal/min
Oil pressure
1300 – 1885 psi
Rounds per minute
1000 – 1500
Force to the ground
50 kN
Standard base plate
15.7 x 31.5 inch
METRIC SYSTEM
Carrier weight
5 – 9 t
Equipment weight
430 kg
Required oil supply
20 – 50 L/min
Oil pressure
90 – 130 bar
Rounds per minute
1000 – 1500
Force to the ground
50 kN
Standard base plate
400 x 800 mm

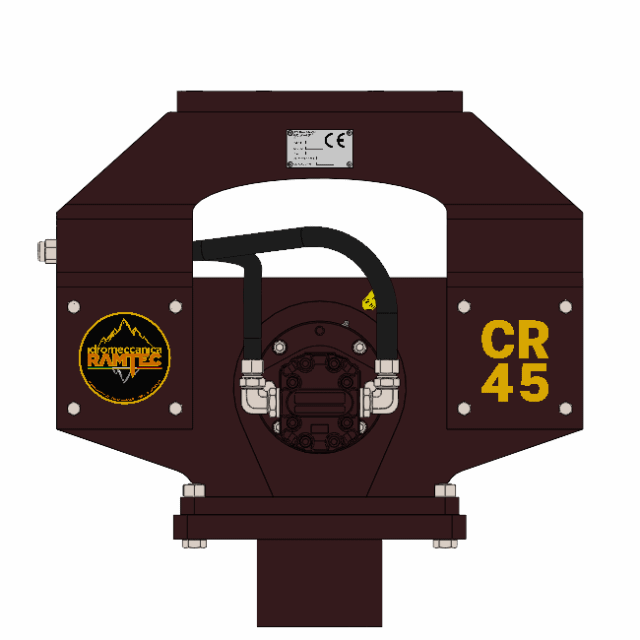

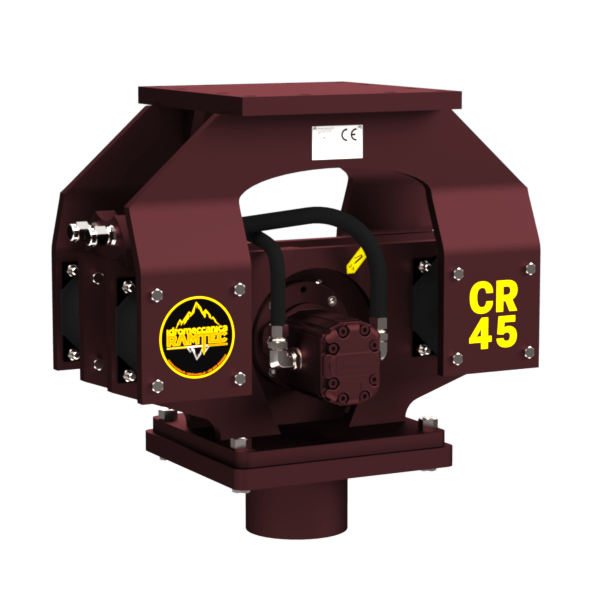

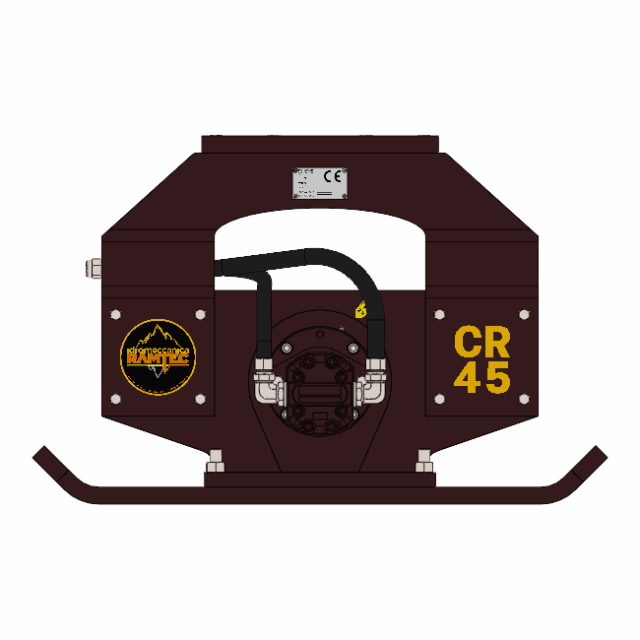

The vibrating plate compactor CR45 weighs 430 kg and is suitable for a mini loader, a backhoe, or a mini excavator from 5 t to 9 t. The bolted – and not welded – lower plate of this compactor can be easily replaced with a custom-made piledriver plate. This solution makes our CR45 vibratory plate a perfect attachment to drive piles of different dimensions into the soil. Our CR45, both as hydraulic compactor and as pile driver, can be mounted on the carrier machine with a standard top bracket, with a quick adapter coupler or with a skid steer plate.
