CR 90
HYDRAULIC PLATE COMPACTOR AND PILEDRIVER
HYDRAULIC PLATE COMPACTOR AND PILEDRIVER
You can mount it on
12-20 t
You can mount it on
12-20 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
12 – 20 t
Equipment weight
1989 lb
Required oil supply
13 – 26 gal/min
Oil pressure
1450 – 2465 psi
Rounds per minute
1000 – 1700
Force to the ground
110 kN
Standard base plate
31.5 x 39.4 inch
METRIC SYSTEM
Carrier weight
12 – 20 t
Equipment weight
900 kg
Required oil supply
50 – 100 L/min
Oil pressure
100 – 170 bar
Rounds per minute
1000 – 1700
Force to the ground
110 kN
Standard base plate
800 x 1000 mm

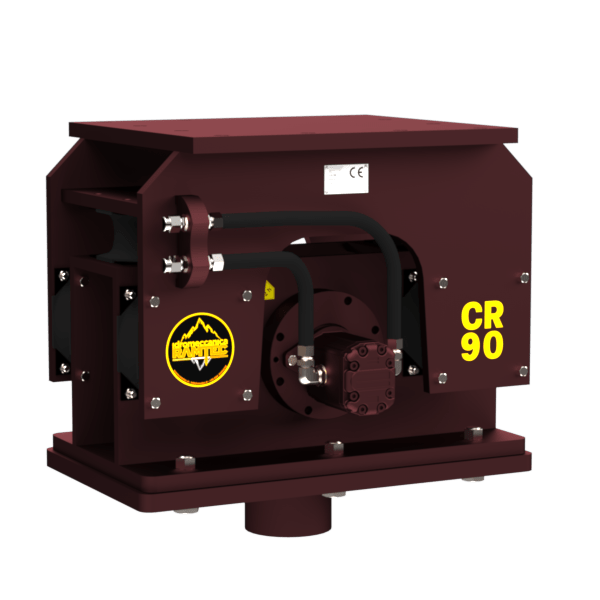

CR90 is the biggest vibrating plate compactor of Idromeccanica Ramtec’s range; it weighs 900 kg and it is easy to instal and use. This vibratory plate can be connected to excavators from 12 t to 20 t with a standard top bracket or a quick coupler. The bolted – and not welded – lower plate of this hydraulic compactor can be easily replaced with a customizable piledriver plate. This makes our CR90 compactor an effective attachment to drive piles of different dimensions into the soil.
